Power supply 24V

Description

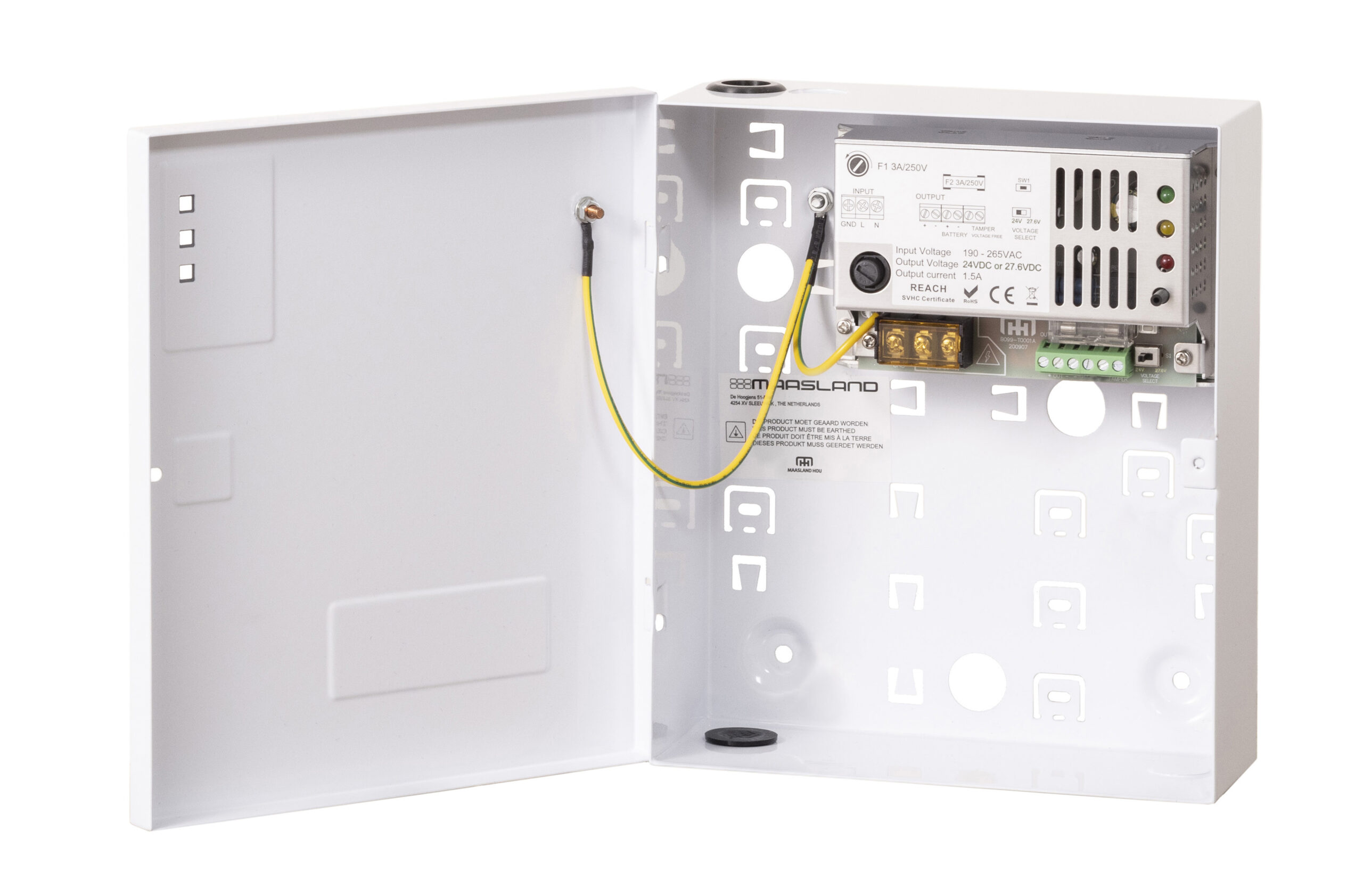

These switch mode power supplies transform 230V to 24V=, deliver 1.5, 5 or 10 amps and are regulated. This ensures a constant output voltage. Equipped with LED indication, connection for a battery (emergency power supply), tamper contact and selector switch for 24V or 27.6V. Choose between a model in a steel housing or a separate unit with optional DIN rail adapters. Can optionally be supplied with a PCB for connection to the fire alarm control unit. For the 5-ampere and 10-ampere models, an optional PCB can be supplied for monitoring the power supply and battery. This PCB is equipped with two potential-free relay outputs. For the 10 amp model, a PCB with 5 x 1A and 5 x 2A fused outputs can be supplied as an option.

Features

• 24V=  1.5A, 5A or 10A
• LED indicators
• Battery charching circuit
• Tamper contact
• Selector switch for 24V or 27.6V
• In solid steel housing or as separate unit with optional DIN rail adapters
• Optionally available with print for connection to a fire alarm control unit
• The 5A and 10A model can optionally be supplied with a PCB for monitoring the power supply and the battery
• For the 10A model, a PCB with 5 x 1A and 5 x 2A fused outputs is available as an option (all fuses included)
